The Role of CFD on Bioreactor Scale Up Process

One of the most common questions that come to the process engineer’s mind is “How to scale up a benchtop reactor into an industrial-sized one?”. The answer to this question is not straightforward or easy to get. For instance, it is a misconception that an industrial-sized reactor will perform in the same way that a benchtop reactor would. Therefore, the scale-up process is not an easy one. A deep analysis of different factors, that influence the reactor behavior, must be done.

Bioprocessing or pharmaceutical process development usually starts with using a benchtop reactor. Once the processing team is convinced that the process is adequate and feasible, the process is passed to a pilot-sized reactor, where the engineers look for optimal operating conditions. This is the most challenging part: to replicate the pilot's optimal operating conditions to a commercial-sized reactor. This process is called scale-up. It is crucial in the development of bioprocesses, pharmaceutical processes, and food processes [1].

The scale-up process is performed from two different perspectives, the geometrical and the operating conditions. Initially, the engineers tend to keep geometrical similarities among the reactors. Hence, once the reactor's volume is determined, the geometric parameters, such as diameter, height, baffle sizes, and stirrer (if it applies), are calculated. However; this is not enough to guarantee a correct scale-up. Some operating conditions should be kept constant [1]. Some examples of scale-up strategies are the following:

From the geometric perspective, the engineers can scale the reactor's volume or the reactor's key dimensions. What variable to use for scaling purposes will depend on many factors, such as production rate and cost.

• Volume: For scaling-up, the engineers' volume, the new volume they want to use, is defined. After the reactor's volume is determined, an estimation of the reactor dimensions is done. For this, the engineers generally try to keep geometrical similarity between the existing and the industrial, proposed reactor. Thus, there is no way to do linear scalability of the dimensions, i.e., the scale factor used for scaling the volume is not identical to the scale factor used to scaling-up the reactor's diameter or height.

• Diameter or height: Sometimes, the engineers decide to scale the reactor's diameter or height linearly. This decision is a consequence of space or design restriction. However, doing this does not imply that the volume scales linearly, and attention must be taken to this.

Figure 1. Velocity contours inside the reactor at two different planes

As we mentioned before, doing a geometrical scale-up is not enough. Some process operating conditions must be kept constant as well. Here are some examples of operating conditions that should be kept constant:

• Impeller speed: The typical methods of determining impeller speed are dependent on empirical correlations to keep relevant parameters constant with the change in scale. Evaluation of impeller speed is based on maintaining agitation power input per unit volume (P/V) or impeller tip velocity.

• Aeration rate: The aeration rate is also dependent on empirical correlations. The parameters to keep constant are keeping constant the volumetric oxygen mass transfer coefficient (kLa), the superficial gas velocity, specific gas flow rate, or gas flow number.

Video 1. Left) Evolution of velocity contours inside the reactor at two different planes, right) Evolution of velocity vectors inside the reactor

Engineers often keep one or several parameter(s) constants through scale-up and build their strategy around it.

As can be noted, the development of a reactor scale-up process is not an easy task. To address the complications that appear in scaling up, many engineers and companies have started to use Computational Fluid Dynamics (CFD) techniques for doing scale-up purposes [2][3][4].

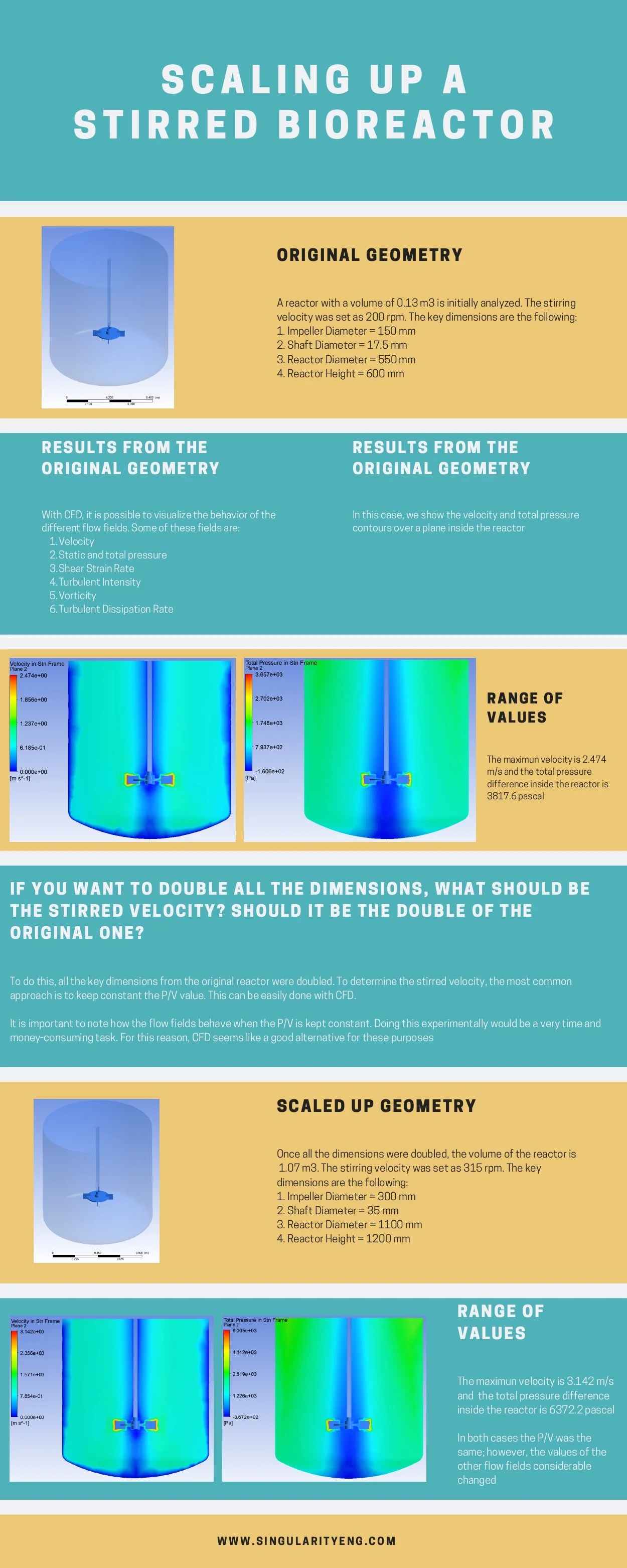

With CFD: it is possible to perform the reactor's scale-up processes, keeping both constant, geometrical aspect ratios or operating conditions. For explanation purposes, the behavior of two geometrically scaled reactors is below shown. In this example, both reactors are geometrically similar but are scaled in 0.5.

Bibliography

[1] E. Mahdinia, D. Cekmecelioglu y A. Demirci, «Bioreactor scale-up,» de Essentials in Fermentation Technology, Springer, Cham, 2019, pp. 213-236.

[2] C. Bach, J. Yang, H. Larsson, S. Stocks, K. Germaey, M. Albaek y U. Kruhne, «Evaluation of mixing and mass transfer in a stirred pilot scale bioreactor utilizing CFD,» Chemical Engineering Science, 2017.

[3] V. Capello, C. Plais, C. Vial y F. Augier, « scale-up of aerated bioreactors: cfd validation and application to the enzyme production by trichoderma reesei,» Chemical Engineering Science, 2021.

[4] T. Villiger, B. Neunstoecklin, D. Karst, E. Lucas, M. Stettler, H. Broly y M. Soos, « Experimental and CFD physical characterization of animal cell bioreactors: from micro-to production scale,» Biochemical Engineering Journal, pp. 84-94, 2018.
